Description

EV 36V, 350WATTS ELECTRIC CYCLE HUB MOTOR KIT

SPECIFICATIONS:

✔️ Usage: Bicycle

✔️ Operating Voltage: 36v

✔️ Working Temperature : -20℃-45℃

✔️ Rated RPM: 180-290rpm

✔️ Unload Amp/ Peak Amp: 1A/12A

✔️ Continuous Power Rated & Peak : 250/550w

✔️ Torque (nm) Peak: 38nm

✔️ Peak Efficiency : 85%

✔️ Water & Dust protection Level (IP Rating): IP65

✔️ Weight of motor : 2.3kg

✔️ Maximum Speed : 25km/hr.

✔️ Motor shaft size : 110mm.

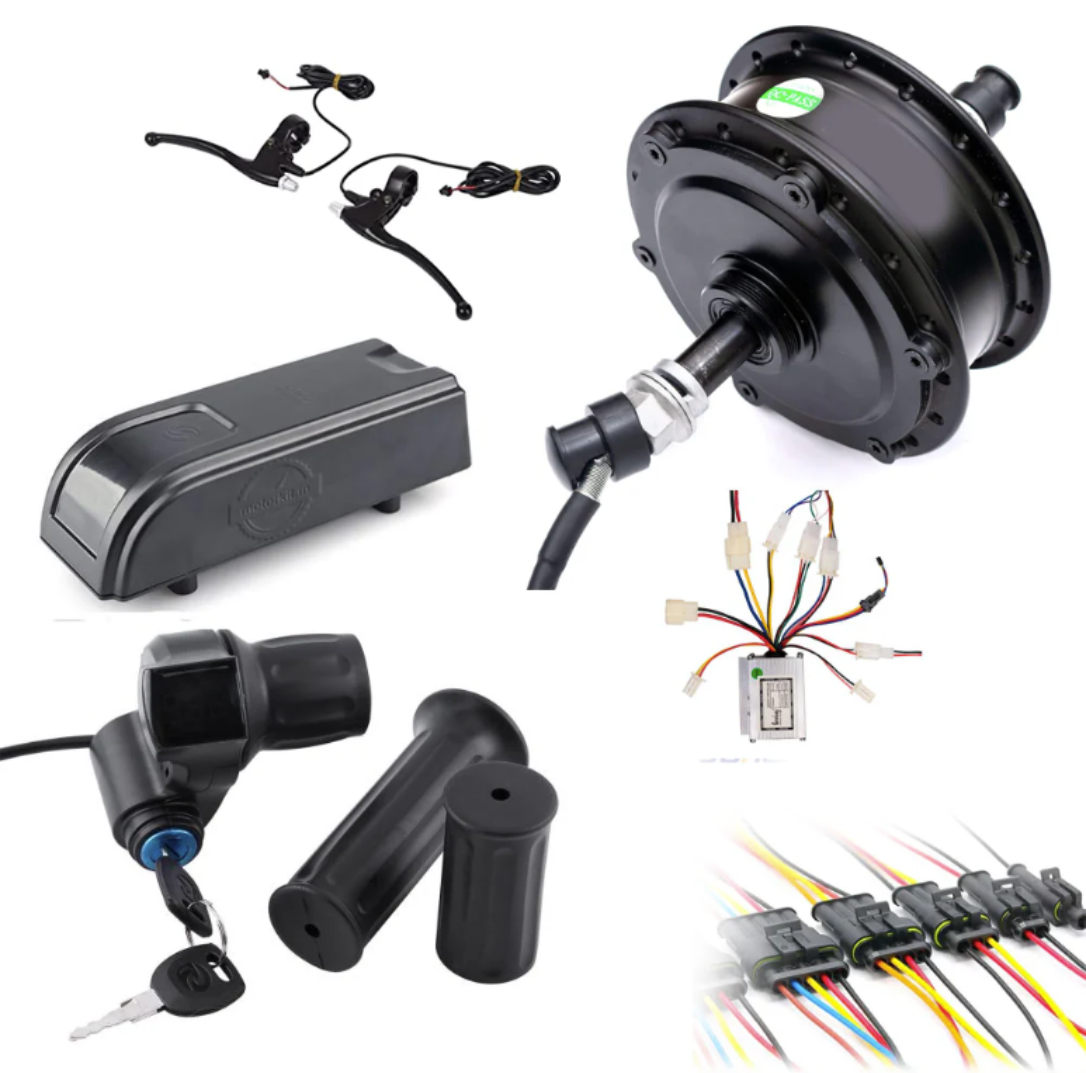

KIT INCLUDES: 📦 36v,48v 350w geekay hub motor, 📦 36v,48v 350w geekay controller, 📦 Display Led throttle with key function, 📦 Brake lever set for autocut,📦 Controller box, 📦 Waterproof wiring harness, 📦 Fog light with inbuilt loud horn, 📦 Paddle assist sensor (PAS), 📦 36 Spokes with nipples.
